ETI (MIG Replacement)
ETI (Ellab Temperature indicator) is a high-quality temperature and pressure indicator device in Retort. Each indicator is a FDA 21 CFR Part 113 compliant alternative to the mercury-in-glass thermometer.
ที่ติดตั้งETIได้เพื่อทดแทนเครื่องวัดอุณหภูมิแบบดั้งเดิมที่ใช้สารปรอทz-z1375804993654.png)
ETI (Ellab Temperature Indicator) is a MIG thermometer replacement in retort
On LCD ETI's screen, It records and displays temperature, time, pressure, date and sensors ID of the test. The temperature measuring range is from -100 to 150 °C (calibrated measuring range: 0 to 140 °C), the pressure measuring range is from 0 to 4 bar abs and Device memory contains 60,000 data points.
The device is compliant with Ellab’s ETISuite and ValSuite software. Sensors accuracy is ±0.1 °C with NIST traceable (or equivalent) calibration certificates. ETI does not comprise of Mercury as MIG so user do not concern about Mercury contaminate to packaging in the retort. It is durable to magnetic wave.
ETI's menu function in ValSuite Software
ETI devices can be operated through the ValSuite software or the optional ETISuite software
The ETI time and temperature/pressure measurements are communicated directly via Modbus Communication, When connected to a PLC, to monitor and/or control the process and the retort. Remote secondary displays can also be added with PLC's SCADA, allowing you to monitor several ETI units from a single location. Moreover, ETI supports Pressure and Temperature Sensor. Sensors are changeable and customized the length (Please inform us before make a purchase).

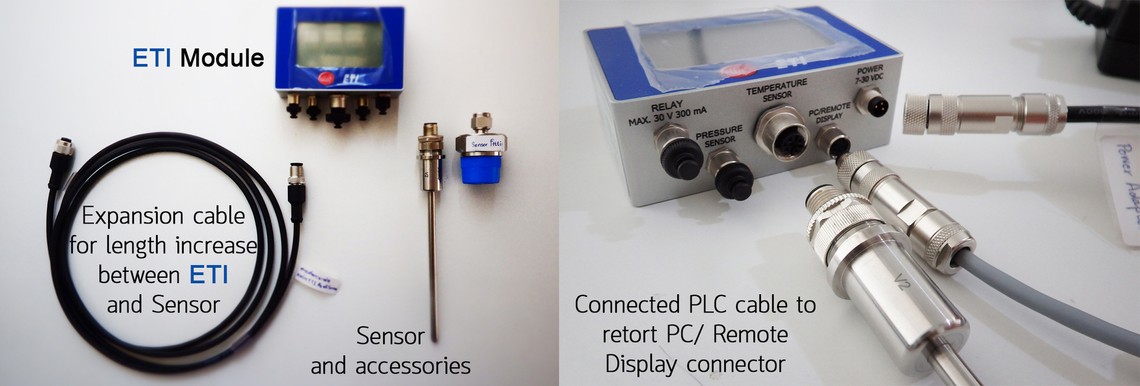

ETI's fitting accessories help its sensor stable
when validated in retort.
when validated in retort.
ETI's Key Features and Benefits
ETI's Key Features and Benefits
- Unique calibration concept with interchangeable probes that secures a constant production flow and prevents downtime
- Send temperature/time data through the RS485 port to a remote computer
- Automatic warning upon loss of accuracy or probe malfunction
- Internal rechargeable 8-hour battery
- The software also collects temperature/time data from the ETI with the option of generating PDF reports
- The ETI is delivered with optional user-friendly software that enables users to reset the clock
- A cable for horizontal probe installations is available
- Automatic warning before calibration due date
★ ETI Technical Specification
